Koyo BLF207
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

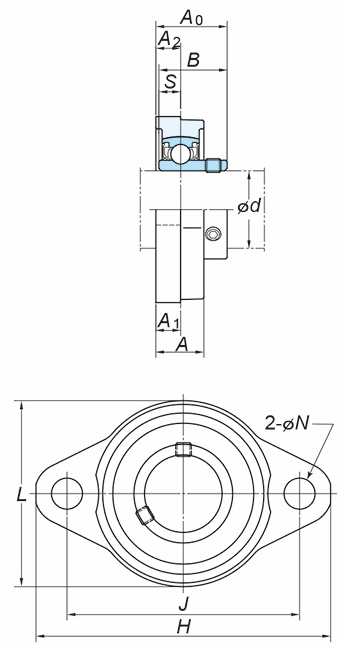

(Boundary dimensions ...etc)
d
35 mm
H
122 mm
L
89 mm
A
24 mm
J
100 mm
N
12 mm
A1
13 mm
A2
13 mm
S
8.5 mm
BLF - A0
36.5 mm
BLF - B
32 mm
ALF - A01
mm
ALF - B1
mm
Bolt size
M10
Basic load ratings : Cr
25.7 kN
Basic load ratings : C0r
15.4 kN
Fatigue load limit : Cu
0.700 kN
factor : f0
13.9
(Refer.)Unit mass - BLF
0.77 kg
(Refer.)Unit mass - ALF
kg
