Koyo BLP201
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

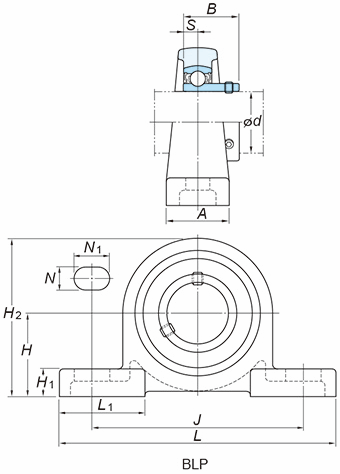

(Boundary dimensions ...etc)
d
12 mm
H
30.2 mm
L
114 mm
A
25 mm
J
87 mm
N
11 mm
N1
16 mm
H1
12 mm
H2
57 mm
L1
mm
S
6 mm
B
22 mm
B1
mm
Bolt size
M10
Basic load ratings : Cr
9.55 kN
Basic load ratings : C0r
4.80 kN
Fatigue load limit : Cu
0.218 kN
factor : f0
13.2
Mounting dimensions
Refer.
(Refer.)Unit mass
kg
