Koyo BLP208
(BRAND)：KOYO
(Availability)：In Stock
Specifications

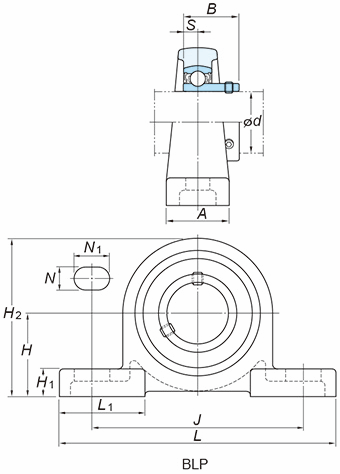

(Boundary dimensions ...etc)
d
40 mm
H
50.8 mm
L
184 mm
A
37 mm
J
140 mm
N
14 mm
N1
22 mm
H1
18 mm
H2
102 mm
L1
mm
S
9 mm
B
34 mm
B1
mm
Bolt size
M12
Basic load ratings : Cr
29.1 kN
Basic load ratings : C0r
17.8 kN
Fatigue load limit : Cu
0.809 kN
factor : f0
14.0
Mounting dimensions
Refer.
(Refer.)Unit mass
kg
