(BRAND)：KOYO
(Availability)：In Stock
Specifications

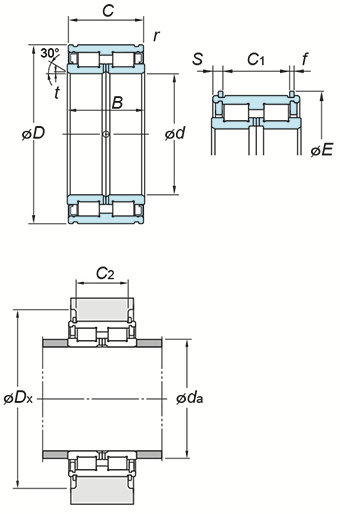

(Boundary dimensions ...etc)
d
40 mm
D
68 mm
B
38 mm
C
37 mm
t
0.9 mm
r(min.)
0.6 mm
Basic load ratings : Cr
110 kN
Basic load ratings : C0r
125 kN
Fatigue load limit : Cu
15.9 kN
C1
28 mm
S
4.5 mm
E
71.8 mm
f
2 mm
Mounting dimensions
da(min.)
46 mm
Dx(min.)
80 mm
C2
28 mm
Refer.
(Refer.)Mass
0.55 kg
