(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

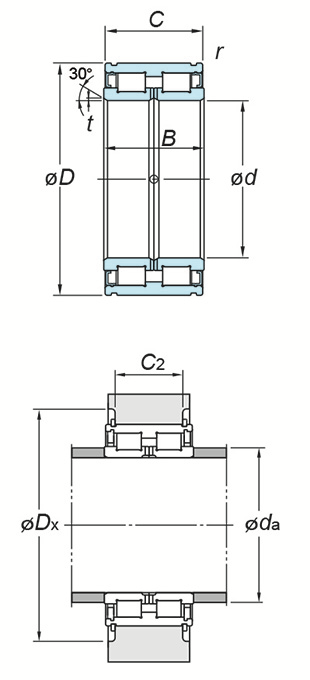

(Boundary dimensions ...etc)
d
120 mm
D
180 mm
B
80 mm
C
79 mm
t
1.7 mm
r(min.)
1 mm
Basic load ratings : Cr
500 kN
Basic load ratings : C0r
750 kN
Fatigue load limit : Cu
103 kN
C1
- mm
S
- mm
E
- mm
f
- mm
Mounting dimensions
da(min.)
132 mm
Dx(min.)
- mm
C2
- mm
Refer.
(Refer.)Mass
6.95 kg
