Koyo F603
(BRAND)：KOYO
(Availability)：In Stock
Specifications

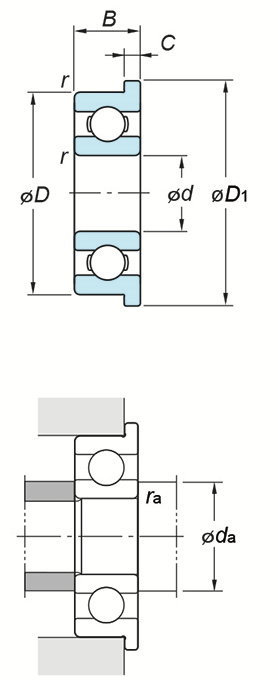

(Boundary dimensions ...etc)
d
3 mm
D
9 mm
B
3 mm
r(min.)
0.15 mm
Basic load ratings : Cr
0.71 kN
Basic load ratings : C0r
0.19 kN
Fatigue load limit : Cu
0.005 kN
factor : f0
12.4
Limiting speeds(Grease lub.)
60000 min-1
Limiting speeds(Oil lub.)
72000 min-1
Dimensions of flange D1
10.5 mm
Dimensions of flange C1
0.7 mm
Mounting dimensions
da(min.)
4.2 mm
ra(max.)
0.15 mm
Refer.
(Refer.)Mass
1.0 g
