Koyo F605
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
(Boundary dimensions ...etc)
d
5 mm
D
14 mm
B
5 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.65 kN
Basic load ratings : C0r
0.51 kN
Fatigue load limit : Cu
0.01 kN
factor : f0
12.3
Limiting speeds(Grease lub.)
48000 min-1
Limiting speeds(Oil lub.)
57000 min-1
Dimensions of flange D1
16 mm
Dimensions of flange C1
1 mm

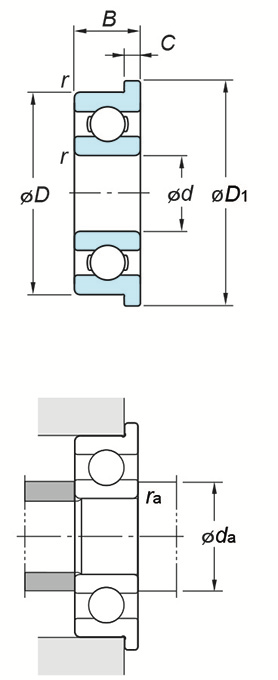

Mounting dimensions
da(min.)
6.6 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
3.9 g
