Koyo F606 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

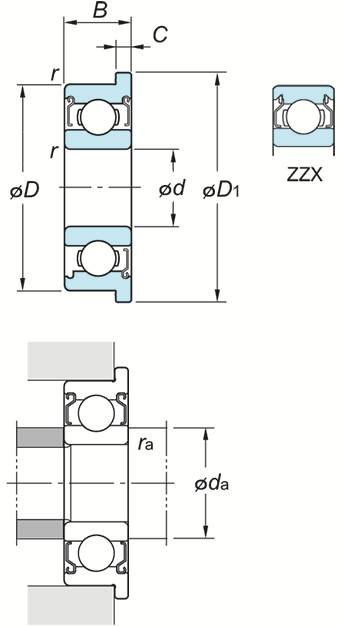

(Boundary dimensions ...etc)
d
6 mm
D
17 mm
B
6 mm
r(min.)
0.3 mm
Basic load ratings : Cr
2.85 kN
Basic load ratings : C0r
0.84 kN
Fatigue load limit : Cu
0.03 kN
factor : f0
11.4
Limiting speeds(Grease lub.)
43000 min-1
Limiting speeds(Oil lub.)
- min-1
Dimensions of flange D1
19 mm
Dimensions of flange C1
1.2 mm
Mounting dimensions
da(min.)
8 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
6.3 g
