Koyo F623
(BRAND)：KOYO
(Availability)：In Stock
Specifications

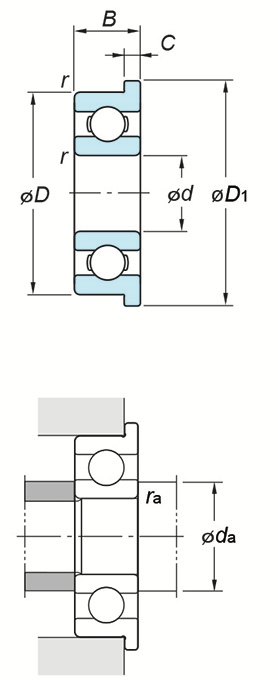

(Boundary dimensions ...etc)
d
3 mm
D
10 mm
B
4 mm
r(min.)
0.15 mm
Basic load ratings : Cr
0.80 kN
Basic load ratings : C0r
0.22 kN
Fatigue load limit : Cu
0.006 kN
factor : f0
12.4
Limiting speeds(Grease lub.)
61000 min-1
Limiting speeds(Oil lub.)
72000 min-1
Dimensions of flange D1
11.5 mm
Dimensions of flange C1
1 mm
Mounting dimensions
da(min.)
4.2 mm
ra(max.)
0.15 mm
Refer.
(Refer.)Mass
1.8 g
