Koyo F625
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

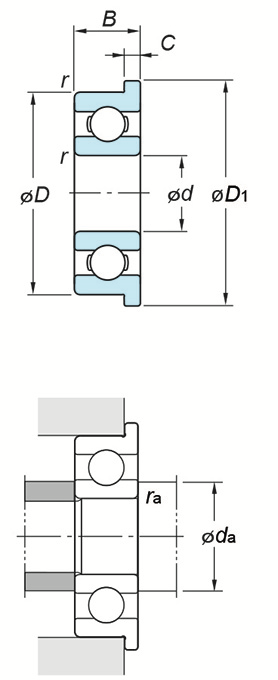

(Boundary dimensions ...etc)
d
5 mm
D
16 mm
B
5 mm
r(min.)
0.3 mm
Basic load ratings : Cr
2.15 kN
Basic load ratings : C0r
0.67 kN
Fatigue load limit : Cu
0.03 kN
factor : f0
12.4
Limiting speeds(Grease lub.)
45000 min-1
Limiting speeds(Oil lub.)
54000 min-1
Dimensions of flange D1
18 mm
Dimensions of flange C1
1 mm
Mounting dimensions
da(min.)
7 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
5.4 g
