Koyo F635
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

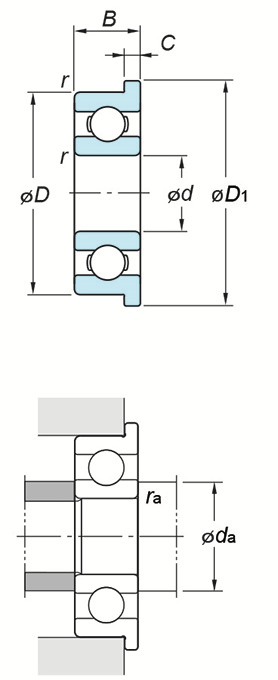

(Boundary dimensions ...etc)
d
5 mm
D
19 mm
B
6 mm
r(min.)
0.3 mm
Basic load ratings : Cr
2.90 kN
Basic load ratings : C0r
0.89 kN
Fatigue load limit : Cu
0.04 kN
factor : f0
12.3
Limiting speeds(Grease lub.)
40000 min-1
Limiting speeds(Oil lub.)
47000 min-1
Dimensions of flange D1
22 mm
Dimensions of flange C1
1.5 mm
Mounting dimensions
da(min.)
7 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
9.7 g
