Koyo F636
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

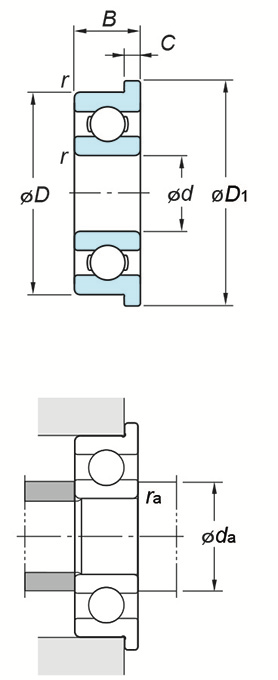

(Boundary dimensions ...etc)
d
6 mm
D
22 mm
B
7 mm
r(min.)
0.3 mm
Basic load ratings : Cr
4.10 kN
Basic load ratings : C0r
1.35 kN
Fatigue load limit : Cu
0.06 kN
factor : f0
12.4
Limiting speeds(Grease lub.)
34000 min-1
Limiting speeds(Oil lub.)
41000 min-1
Dimensions of flange D1
25 mm
Dimensions of flange C1
1.5 mm
Mounting dimensions
da(min.)
8 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
14 g
