Koyo F685
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

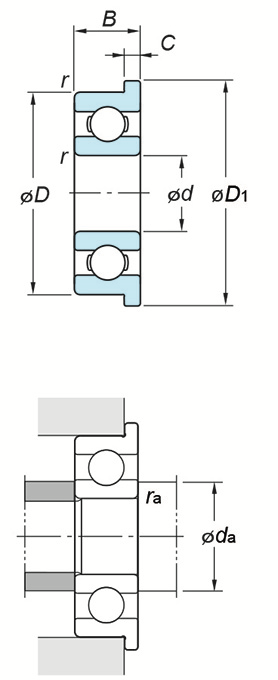

(Boundary dimensions ...etc)
d
5 mm
D
11 mm
B
3 mm
r(min.)
0.15 mm
Basic load ratings : Cr
0.89 kN
Basic load ratings : C0r
0.28 kN
Fatigue load limit : Cu
0.007 kN
factor : f0
14.0
Limiting speeds(Grease lub.)
53000 min-1
Limiting speeds(Oil lub.)
63000 min-1
Dimensions of flange D1
12.5 mm
Dimensions of flange C1
0.8 mm
Mounting dimensions
da(min.)
6.2 mm
ra(max.)
0.15 mm
Refer.
(Refer.)Mass
1.1 g
