Koyo F686
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

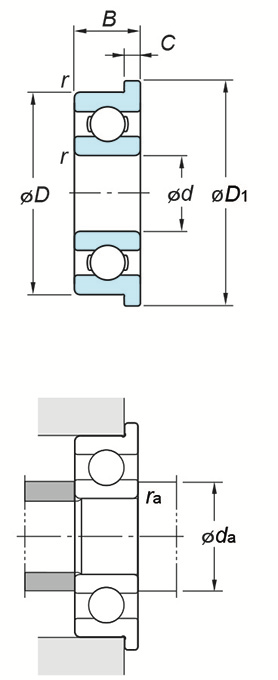

(Boundary dimensions ...etc)
d
6 mm
D
13 mm
B
3.5 mm
r(min.)
0.15 mm
Basic load ratings : Cr
1.35 kN
Basic load ratings : C0r
0.44 kN
Fatigue load limit : Cu
0.010 kN
factor : f0
13.7
Limiting speeds(Grease lub.)
48000 min-1
Limiting speeds(Oil lub.)
57000 min-1
Dimensions of flange D1
15 mm
Dimensions of flange C1
1 mm
Mounting dimensions
da(min.)
7.2 mm
ra(max.)
0.15 mm
Refer.
(Refer.)Mass
2.1 g
