Koyo F688
(BRAND)：KOYO
(Availability)：In Stock
Specifications

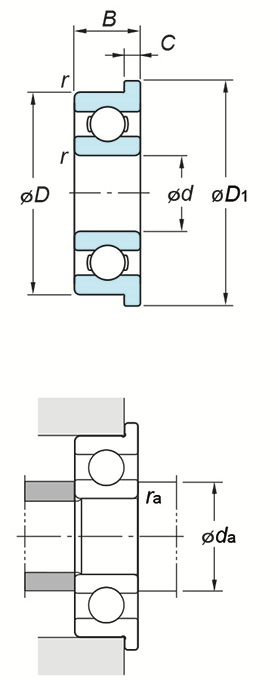

(Boundary dimensions ...etc)
d
8 mm
D
16 mm
B
4 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.55 kN
Basic load ratings : C0r
0.59 kN
Fatigue load limit : Cu
0.020 kN
factor : f0
14.8
Limiting speeds(Grease lub.)
42000 min-1
Limiting speeds(Oil lub.)
50000 min-1
Dimensions of flange D1
18 mm
Dimensions of flange C1
1 mm
Mounting dimensions
da(min.)
9.6 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
3.6 g
