Koyo F695
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

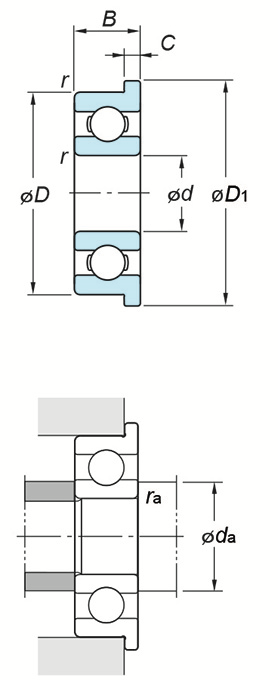

(Boundary dimensions ...etc)
d
5 mm
D
13 mm
B
4 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.35 kN
Basic load ratings : C0r
0.43 kN
Fatigue load limit : Cu
0.010 kN
factor : f0
13.4
Limiting speeds(Grease lub.)
49000 min-1
Limiting speeds(Oil lub.)
59000 min-1
Dimensions of flange D1
15 mm
Dimensions of flange C1
1 mm
Mounting dimensions
da(min.)
6.6 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
2.5 g
