Koyo F696 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

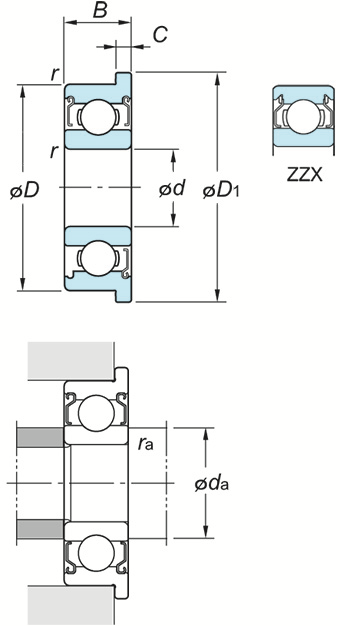

(Boundary dimensions ...etc)
d
6 mm
D
15 mm
B
5 mm
r(min.)
0.2 mm
Basic load ratings : Cr
1.70 kN
Basic load ratings : C0r
0.52 kN
Fatigue load limit : Cu
0.01 kN
factor : f0
13.0
Limiting speeds(Grease lub.)
47000 min-1
Limiting speeds(Oil lub.)
- min-1
Dimensions of flange D1
17 mm
Dimensions of flange C1
1.2 mm
Mounting dimensions
da(min.)
7.6 mm
ra(max.)
0.2 mm
Refer.
(Refer.)Mass
4.3 g
