Koyo F697
(BRAND)：KOYO
(Availability)：In Stock

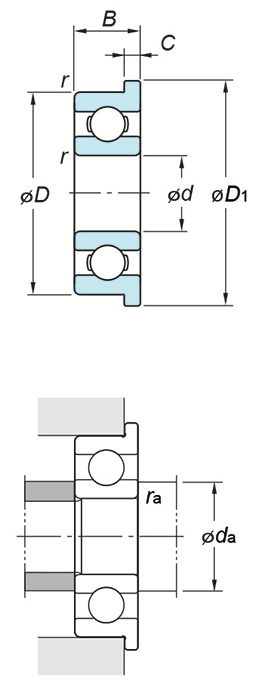

Specifications
(Boundary dimensions ...etc)
d
7 mm
D
17 mm
B
5 mm
r(min.)
0.3 mm
Basic load ratings : Cr
2.00 kN
Basic load ratings : C0r
0.71 kN
Fatigue load limit : Cu
0.02 kN
factor : f0
14.0
Limiting speeds(Grease lub.)
42000 min-1
Limiting speeds(Oil lub.)
50000 min-1
Dimensions of flange D1
19 mm
Dimensions of flange C1
1.2 mm
Mounting dimensions
da(min.)
9 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
5.8 g
