Koyo F698
(BRAND)：KOYO
(Availability)：In Stock
Specifications

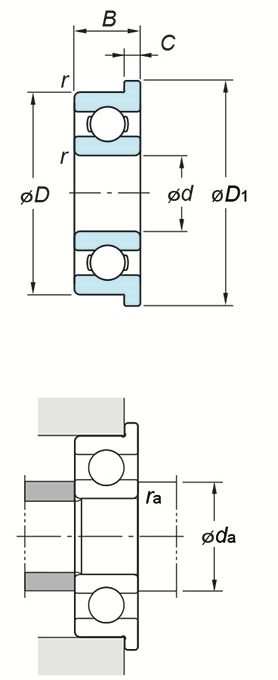

(Boundary dimensions ...etc)
d
8 mm
D
19 mm
B
6 mm
r(min.)
0.3 mm
Basic load ratings : Cr
2.80 kN
Basic load ratings : C0r
0.91 kN
Fatigue load limit : Cu
0.040 kN
factor : f0
12.9
Limiting speeds(Grease lub.)
39000 min-1
Limiting speeds(Oil lub.)
46000 min-1
Dimensions of flange D1
22 mm
Dimensions of flange C1
1.5 mm
Mounting dimensions
da(min.)
10 mm
ra(max.)
0.3 mm
Refer.
(Refer.)Mass
8.3 g
