Koyo FNT-4060
(BRAND)：KOYO
(Availability)：In Stock

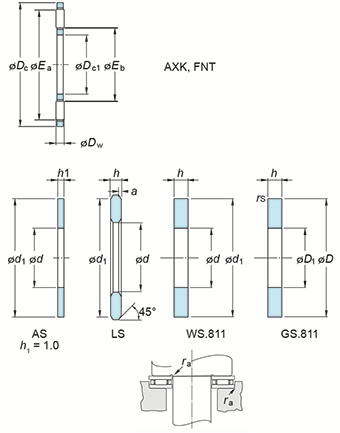

Specifications
(Boundary dimensions ...etc)
Dc1
40 mm
Dc
60 mm
Dw
3 mm
Ea
57.0 mm
Eb
43.0 mm
ra(max.)
0.6 mm
Basic load ratings Ca
31.5 kN
Basic load ratings C0a
132.0 kN
Fatigue load limit : Cu
14.6 kN
Limiting speeds(Oil lub.)
7100 min-1
Washer dimensions : d
mm
Washer dimensions : D,d1
60 mm
Washer dimensions : D1
42 mm
Thin - Washer dimensions : h1
1.00 mm
Thin - Washer No.
AS4060
Thin - (Refer.)Mass
0.012 kg
Heavy(LS) - Washer dimensions : h
3.50 mm
Heavy(LS) - Washer dimensions : a
1.00 mm
Heavy(LS) - Washer No.
LS4060
Heavy(LS) - (Refer.)Mass
0.041 kg
Heavy - Washer dimensions : h
3.50 mm
Heavy - Washer dimensions : r(min.)
0.60 mm
Heavy - Washer No(Shaft piloted)
WS.81108
Heavy - Washer No.(Housing piloted)
GS.81108
Heavy - (Refer.)Mass
0.043 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.020 kg
