Koyo JH-68
(BRAND)：KOYO
(Availability)：In Stock
Specifications

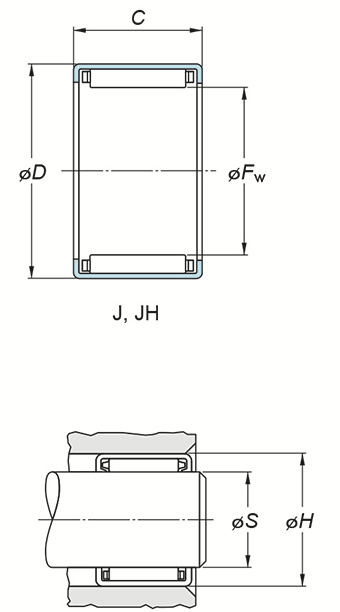

(Boundary dimensions ...etc)
Fw
9.525 mm
D
15.875 mm
C
12.70 mm
Y(max)
mm
Basic load ratings : Cr
6.59 kN
Basic load ratings : C0r
6.08 kN
Fatigue load limit : Cu
0.920 kN
Limiting speeds(Grease lub.)
13000 min-1
Limiting speeds(Oil lub.)
20000 min-1
Mounting inner ring
IRA-3
Mounting dimensions
Refer.
(Refer.)Mass
0.008 kg
