Koyo K.81102TVP
(BRAND)：KOYO
(Availability)：In Stock
Specifications

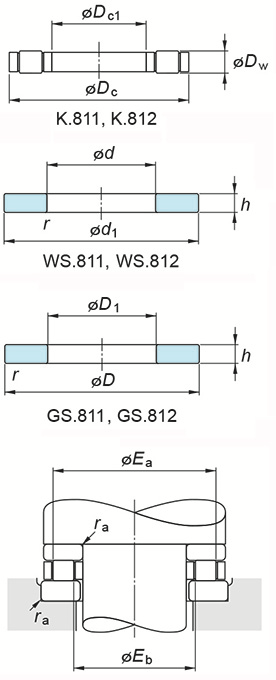

(Boundary dimensions ...etc)
Dc1
15 mm
Dc
28 mm
Dw
3.5 mm
Basic load ratings Ca
12.8 kN
Basic load ratings C0a
28.6 kN
Fatigue load limit : Cu
4.05 kN
Limiting speeds(Oil lub.)
12000 min-1
T
9 mm
Eb(max.)
18 mm
Ea(max.)
25 mm
ra
0.3 mm
Washer dimensions : d
15 mm
Washer dimensions : D1
16 mm
Washer dimensions : D,d1
28 mm
Washer dimensions : h(max)
2.75 mm
Washer dimensions : h(min)
2.64 mm
Washer dimensions : rs(min.)
0.3 mm
Washer designation(Shaft piloted)
WS.81102
Washer designation(Housing piloted)
GS.81102
(Refer.)Washer mass
0.010 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.006 kg
