Koyo K.81103TVP
(BRAND)：KOYO
(Availability)：In Stock
Specifications

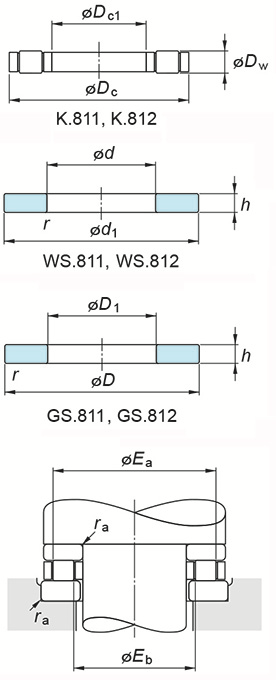

(Boundary dimensions ...etc)
Dc1
17 mm
Dc
30 mm
Dw
3.5 mm
Basic load ratings Ca
14.2 kN
Basic load ratings C0a
33.4 kN
Fatigue load limit : Cu
4.70 kN
Limiting speeds(Oil lub.)
11000 min-1
T
9 mm
Eb(max.)
20 mm
Ea(max.)
27 mm
ra
0.3 mm
Washer dimensions : d
17 mm
Washer dimensions : D1
18 mm
Washer dimensions : D,d1
30 mm
Washer dimensions : h(max)
2.75 mm
Washer dimensions : h(min)
2.64 mm
Washer dimensions : rs(min.)
0.3 mm
Washer designation(Shaft piloted)
WS.81103
Washer designation(Housing piloted)
GS.81103
(Refer.)Washer mass
0.011 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.008 kg
