Koyo K.81108LPB
(BRAND)：KOYO
(Availability)：In Stock
Specifications

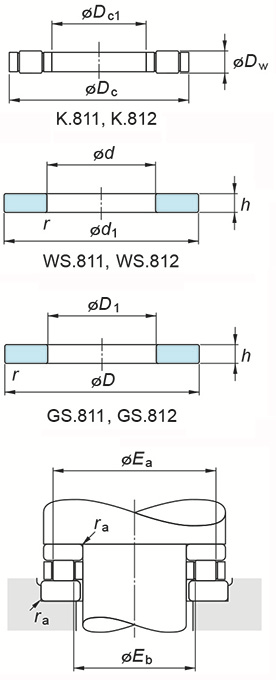

(Boundary dimensions ...etc)
Dc1
40 mm
Dc
60 mm
Dw
6.0 mm
Basic load ratings Ca
44.2 kN
Basic load ratings C0a
126 kN
Fatigue load limit : Cu
12.0 kN
Limiting speeds(Oil lub.)
5300 min-1
T
mm
Eb(max.)
44 mm
Ea(max.)
56 mm
ra
0.6 mm
Washer dimensions : d
40 mm
Washer dimensions : D1
42 mm
Washer dimensions : D,d1
60 mm
Washer dimensions : h(max)
3.50 mm
Washer dimensions : h(min)
3.34 mm
Washer dimensions : rs(min.)
0.6 mm
Washer designation(Shaft piloted)
WS.81108
Washer designation(Housing piloted)
GS.81108
(Refer.)Washer mass
0.043 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.044 kg
