Koyo K.81109LPB
(BRAND)：KOYO
(Availability)：In Stock
Specifications

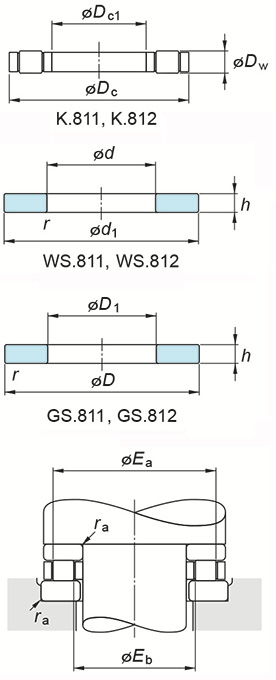

(Boundary dimensions ...etc)
Dc1
45 mm
Dc
65 mm
Dw
6.0 mm
Basic load ratings Ca
47.0 kN
Basic load ratings C0a
140 kN
Fatigue load limit : Cu
13.4 kN
Limiting speeds(Oil lub.)
4800 min-1
T
mm
Eb(max.)
49 mm
Ea(max.)
61 mm
ra
0.6 mm
Washer dimensions : d
45 mm
Washer dimensions : D1
47 mm
Washer dimensions : D,d1
65 mm
Washer dimensions : h(max)
4.00 mm
Washer dimensions : h(min)
3.84 mm
Washer dimensions : rs(min.)
0.6 mm
Washer designation(Shaft piloted)
WS.81109
Washer designation(Housing piloted)
GS.81109
(Refer.)Washer mass
0.054 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.035 kg
