Koyo K.81112TVP
(BRAND)：KOYO
(Availability)：In Stock
Specifications

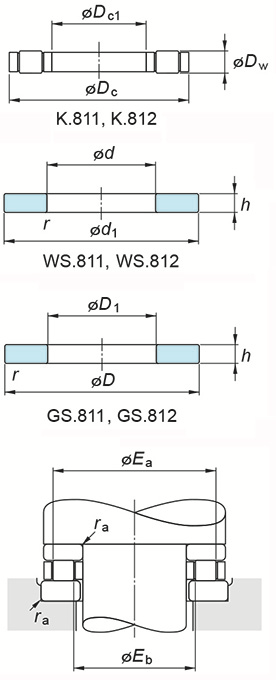

(Boundary dimensions ...etc)
Dc1
60 mm
Dc
85 mm
Dw
7.5 mm
Basic load ratings Ca
84.4 kN
Basic load ratings C0a
281 kN
Fatigue load limit : Cu
30.4 kN
Limiting speeds(Oil lub.)
3600 min-1
T
17 mm
Eb(max.)
65 mm
Ea(max.)
80 mm
ra
1.0 mm
Washer dimensions : d
60 mm
Washer dimensions : D1
62 mm
Washer dimensions : D,d1
85 mm
Washer dimensions : h(max)
4.75 mm
Washer dimensions : h(min)
4.56 mm
Washer dimensions : rs(min.)
1.0 mm
Washer designation(Shaft piloted)
WS.81112
Washer designation(Housing piloted)
GS.81112
(Refer.)Washer mass
0.106 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.103 kg
