Koyo K.81207LPB
(BRAND)：KOYO
(Availability)：In Stock
Specifications

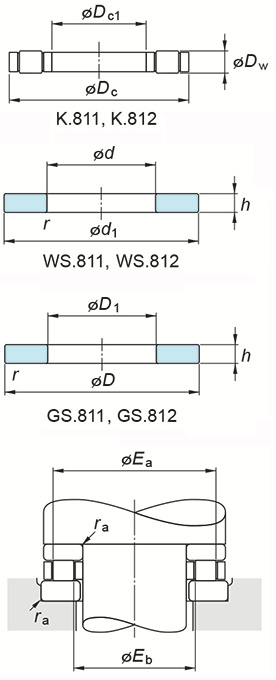

(Boundary dimensions ...etc)
Dc1
35 mm
Dc
62 mm
Dw
7.5 mm
Basic load ratings Ca
58.3 kN
Basic load ratings C0a
152 kN
Fatigue load limit : Cu
16.5 kN
Limiting speeds(Oil lub.)
5300 min-1
T
mm
Eb(max.)
41 mm
Ea(max.)
56 mm
ra
1.0 mm
Washer dimensions : d
35 mm
Washer dimensions : D1
37 mm
Washer dimensions : D,d1
62 mm
Washer dimensions : h(max)
5.25 mm
Washer dimensions : h(min)
5.09 mm
Washer dimensions : rs(min.)
1.0 mm
Washer designation(Shaft piloted)
WS.81207
Washer designation(Housing piloted)
GS.81207
(Refer.)Washer mass
0.085 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.073 kg
