Koyo K.81209TVP
(BRAND)：KOYO
(Availability)：In Stock
Specifications

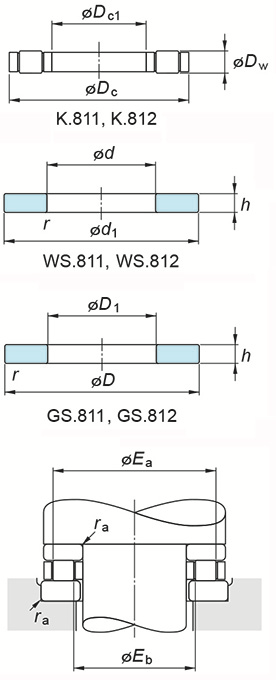

(Boundary dimensions ...etc)
Dc1
45 mm
Dc
73 mm
Dw
9.0 mm
Basic load ratings Ca
94.2 kN
Basic load ratings C0a
266 kN
Fatigue load limit : Cu
30.8 kN
Limiting speeds(Oil lub.)
4500 min-1
T
mm
Eb(max.)
50 mm
Ea(max.)
68 mm
ra
1.0 mm
Washer dimensions : d
45 mm
Washer dimensions : D1
47 mm
Washer dimensions : D,d1
73 mm
Washer dimensions : h(max)
5.50 mm
Washer dimensions : h(min)
5.34 mm
Washer dimensions : rs(min.)
1.0 mm
Washer designation(Shaft piloted)
WS.81209
Washer designation(Housing piloted)
GS.81209
(Refer.)Washer mass
0.112 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.083 kg
