Koyo K.81211LPB
(BRAND)：KOYO
(Availability)：In Stock
Specifications

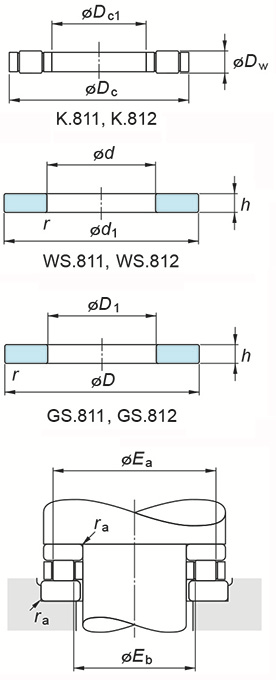

(Boundary dimensions ...etc)
Dc1
55 mm
Dc
90 mm
Dw
11.0 mm
Basic load ratings Ca
127 kN
Basic load ratings C0a
359 kN
Fatigue load limit : Cu
39.6 kN
Limiting speeds(Oil lub.)
3600 min-1
T
mm
Eb(max.)
61 mm
Ea(max.)
84 mm
ra
1.0 mm
Washer dimensions : d
55 mm
Washer dimensions : D1
57 mm
Washer dimensions : D,d1
90 mm
Washer dimensions : h(max)
7.00 mm
Washer dimensions : h(min)
6.81 mm
Washer dimensions : rs(min.)
1.0 mm
Washer designation(Shaft piloted)
WS.81211
Washer designation(Housing piloted)
GS.81211
(Refer.)Washer mass
0.219 kg
Mounting dimensions
Refer.
(Refer.)Mass
0.156 kg
