Koyo K65X73X23H
(BRAND)：KOYO
(Availability)：In Stock
Specifications

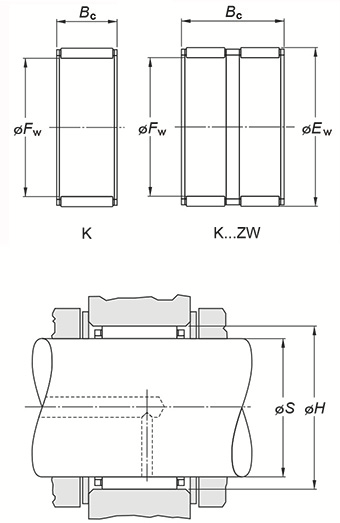

(Boundary dimensions ...etc)
Fw
65 mm
Ew
73 mm
Bc
23 mm
Basic load ratings : Cr
48.2 kN
Basic load ratings : C0r
97.7 kN
Fatigue load limit : Cu
15.5 kN
Cage material P/S
S
Limiting speeds(Grease lub.)
4200 min-1
Limiting speeds(Oil lub.)
6500 min-1
Mounting dimensions
Recommended dimensions - Shaft : S(max.)
65.000 mm
Recommended dimensions - Shaft : S(min.)
64.987 mm
Recommended dimensions - Housing : H(max.)
73.029 mm
Recommended dimensions - Housing : H(min.)
73.010 mm
Refer.
(Refer.)Mass
0.091 kg
