Koyo K90X97X20
(BRAND)：KOYO
(Availability)：In Stock
Specifications

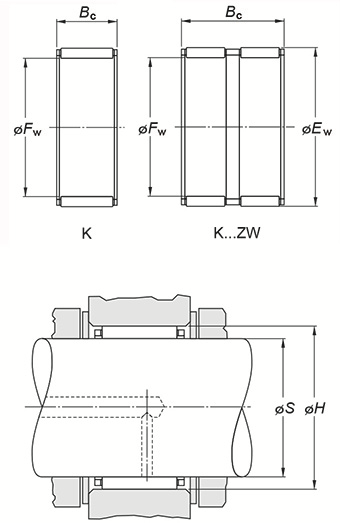

(Boundary dimensions ...etc)
Fw
90 mm
Ew
97 mm
Bc
20 mm
Basic load ratings : Cr
46.3 kN
Basic load ratings : C0r
114 kN
Fatigue load limit : Cu
18.1 kN
Cage material P/S
S
Limiting speeds(Grease lub.)
3000 min-1
Limiting speeds(Oil lub.)
4600 min-1
Mounting dimensions
Recommended dimensions - Shaft : S(max.)
89.988 mm
Recommended dimensions - Shaft : S(min.)
89.973 mm
Recommended dimensions - Housing : H(max.)
97.034 mm
Recommended dimensions - Housing : H(min.)
97.012 mm
Refer.
(Refer.)Mass
0.095 kg
