Koyo KAX035
(BRAND)：KOYO
(Availability)：In Stock
Specifications

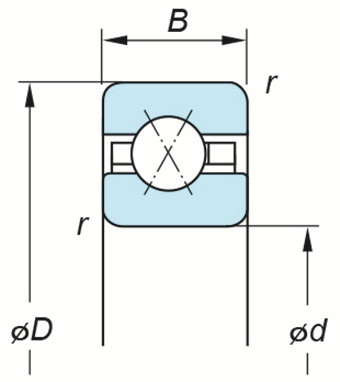

(Boundary dimensions ...etc)
d
88.9 mm
D
101.6 mm
B
6.35 mm
r(min.)
0.6 mm
Basic load ratings : Cr
4.75 kN
Basic load ratings : C0r
6.00 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.082 kg
