Koyo KAX110
(BRAND)：KOYO
(Availability)：In Stock
Specifications

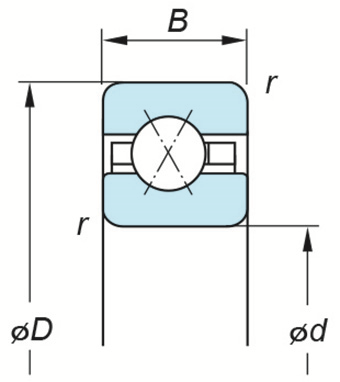

(Boundary dimensions ...etc)
d
279.4 mm
D
292.1 mm
B
6.35 mm
r(min.)
0.6 mm
Basic load ratings : Cr
7.10 kN
Basic load ratings : C0r
17.6 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.236 kg
