Koyo KBC200
(BRAND)：KOYO
(Availability)：In Stock
Specifications

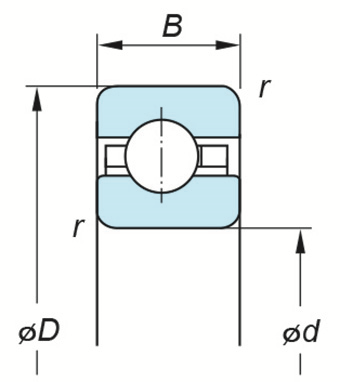

(Boundary dimensions ...etc)
d
508 mm
D
523.875 mm
B
7.938 mm
r(min.)
1 mm
Basic load ratings : Cr
14.4 kN
Basic load ratings : C0r
47.6 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.680 kg
