Koyo KBX045
(BRAND)：KOYO
(Availability)：In Stock
Specifications

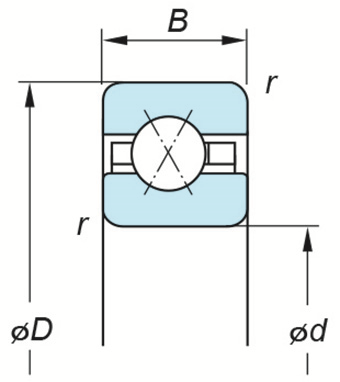

(Boundary dimensions ...etc)
d
114.3 mm
D
130.175 mm
B
7.938 mm
r(min.)
1 mm
Basic load ratings : Cr
7.35 kN
Basic load ratings : C0r
10.0 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.150 kg
