Koyo KBX055
(BRAND)：KOYO
(Availability)：In Stock
Specifications

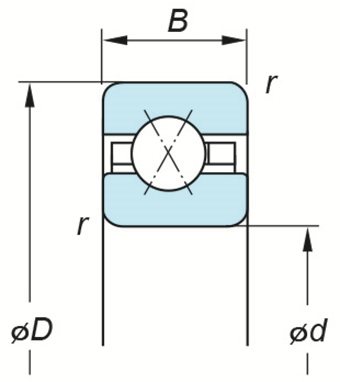

(Boundary dimensions ...etc)
d
139.7 mm
D
155.575 mm
B
7.938 mm
r(min.)
1 mm
Basic load ratings : Cr
7.85 kN
Basic load ratings : C0r
12.0 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.186 kg
