Koyo KBX180
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

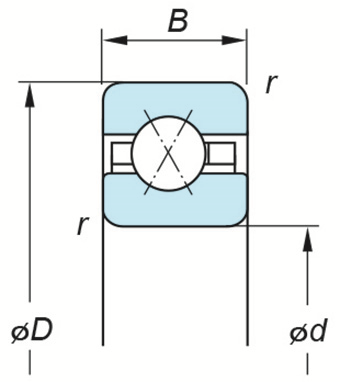

(Boundary dimensions ...etc)
d
457.2 mm
D
473.075 mm
B
7.938 mm
r(min.)
1 mm
Basic load ratings : Cr
12.0 kN
Basic load ratings : C0r
37.1 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.612 kg
