Koyo KCA090
(BRAND)：KOYO
(Availability)：In Stock
Specifications

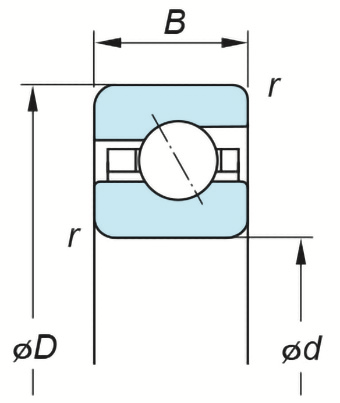

(Boundary dimensions ...etc)
d
228.6 mm
D
247.65 mm
B
9.525 mm
r(min.)
1 mm
Basic load ratings : Cr
14.9 kN
Basic load ratings : C0r
31.4 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.445 kg
