Koyo KCC080
(BRAND)：KOYO
(Availability)：In Stock
Specifications

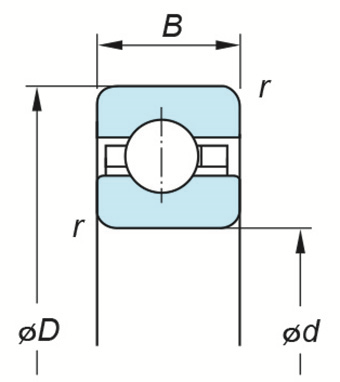

(Boundary dimensions ...etc)
d
203.2 mm
D
222.25 mm
B
9.525 mm
r(min.)
1 mm
Basic load ratings : Cr
13.1 kN
Basic load ratings : C0r
23.1 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.381 kg
