Koyo KCX040
(BRAND)：KOYO
(Availability)：In Stock
Specifications

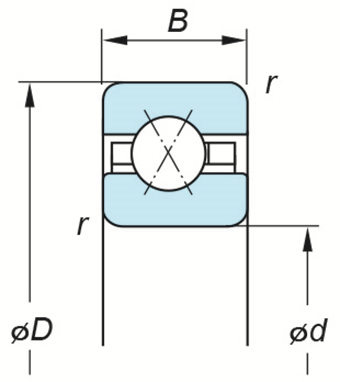

(Boundary dimensions ...etc)
d
101.6 mm
D
120.65 mm
B
9.525 mm
r(min.)
1 mm
Basic load ratings : Cr
8.95 kN
Basic load ratings : C0r
10.6 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.204 kg
