Koyo KCX065
(BRAND)：KOYO
(Availability)：In Stock
Specifications

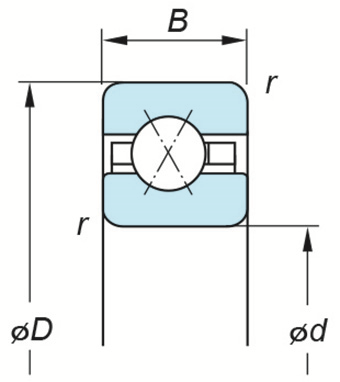

(Boundary dimensions ...etc)
d
165.1 mm
D
184.15 mm
B
9.525 mm
r(min.)
1 mm
Basic load ratings : Cr
10.6 kN
Basic load ratings : C0r
16.4 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.308 kg
