Koyo KDA160
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

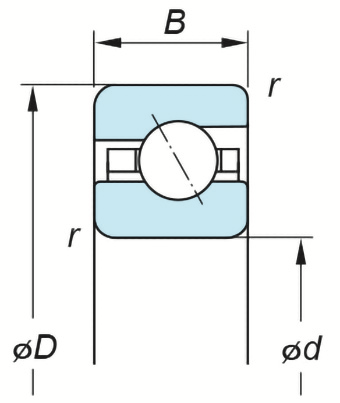

(Boundary dimensions ...etc)
d
406.4 mm
D
431.8 mm
B
12.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
26.8 kN
Basic load ratings : C0r
69.1 kN
Mounting dimensions
Refer.
(Refer.)Mass
1.33 kg
