Koyo KDC040
(BRAND)：KOYO
(Availability)：In Stock
Specifications

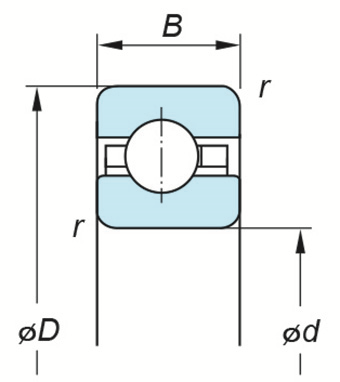

(Boundary dimensions ...etc)
d
101.6 mm
D
127 mm
B
12.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
15.7 kN
Basic load ratings : C0r
17.2 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.354 kg
