Koyo KDC300
(BRAND)：KOYO
(Availability)：In Stock
Specifications

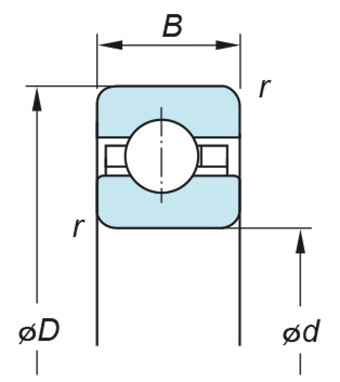

(Boundary dimensions ...etc)
d
762 mm
D
787.4 mm
B
12.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
32.0 kN
Basic load ratings : C0r
110 kN
Mounting dimensions
Refer.
(Refer.)Mass
2.60 kg
