Koyo KDX120
(BRAND)：KOYO
(Availability)：In Stock
Specifications

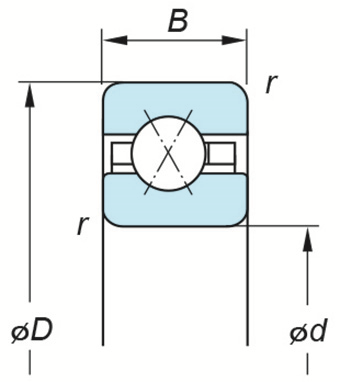

(Boundary dimensions ...etc)
d
304.8 mm
D
330.2 mm
B
12.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
20.0 kN
Basic load ratings : C0r
39.5 kN
Mounting dimensions
Refer.
(Refer.)Mass
1.02 kg
