Koyo KDX180
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

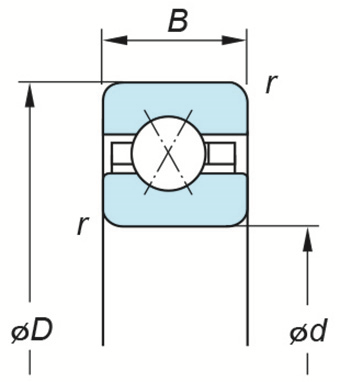

(Boundary dimensions ...etc)
d
457.2 mm
D
482.6 mm
B
12.7 mm
r(min.)
1.5 mm
Basic load ratings : Cr
23.0 kN
Basic load ratings : C0r
58.0 kN
Mounting dimensions
Refer.
(Refer.)Mass
1.58 kg
