Koyo KFX090
(BRAND)：KOYO
(Availability)：In Stock
Specifications

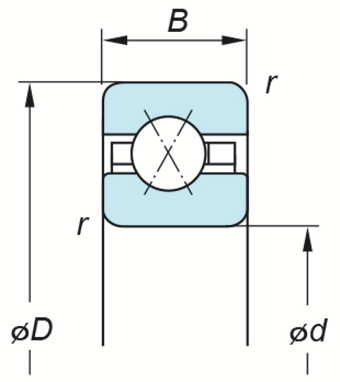

(Boundary dimensions ...etc)
d
228.6 mm
D
266.7 mm
B
19.05 mm
r(min.)
2 mm
Basic load ratings : Cr
32.5 kN
Basic load ratings : C0r
47.2 kN
Mounting dimensions
Refer.
(Refer.)Mass
1.77 kg
