Koyo KTX010
(BRAND)：KOYO
(Availability)：In Stock
Specifications

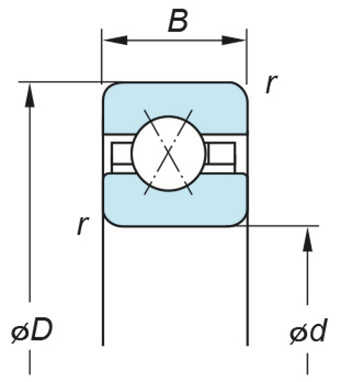

(Boundary dimensions ...etc)
d
25.4 mm
D
34.925 mm
B
4.762 mm
r(min.)
0.4 mm
Basic load ratings : Cr
2.15 kN
Basic load ratings : C0r
1.65 kN
Mounting dimensions
Refer.
(Refer.)Mass
0.012 kg
