Koyo MJ-14161
(BRAND)：KOYO
(Availability)：In Stock
Specifications

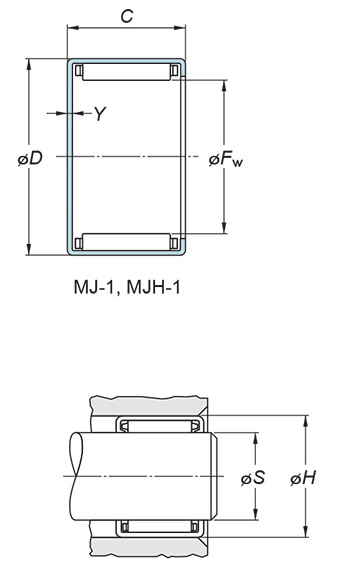

(Boundary dimensions ...etc)
Fw
22.225 mm
D
28.575 mm
C
25.40 mm
Y(max)
1.02 mm
Basic load ratings : Cr
23.66 kN
Basic load ratings : C0r
38.97 kN
Fatigue load limit : Cu
6.05 kN
Limiting speeds(Grease lub.)
9700 min-1
Limiting speeds(Oil lub.)
15000 min-1
Mounting inner ring
IR-1016
Mounting dimensions
Refer.
(Refer.)Mass
0.059 kg
