Koyo MJ-18161
(BRAND)：KOYO
(Availability)：In Stock

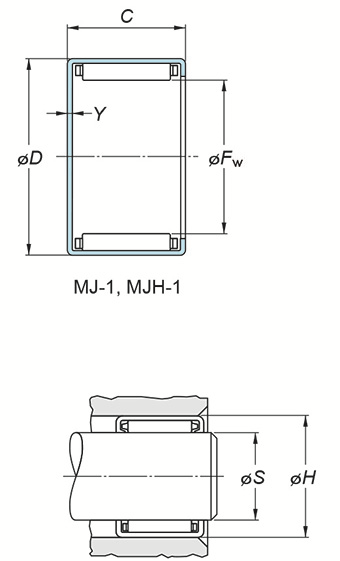

Specifications
(Boundary dimensions ...etc)
Fw
28.575 mm
D
34.925 mm
C
25.40 mm
Y(max)
1.02 mm
Basic load ratings : Cr
26.16 kN
Basic load ratings : C0r
48.04 kN
Fatigue load limit : Cu
7.40 kN
Limiting speeds(Grease lub.)
7400 min-1
Limiting speeds(Oil lub.)
11000 min-1
Mounting inner ring
IR-1416(1)
Mounting dimensions
Refer.
(Refer.)Mass
0.047 kg
